Designed a 3d printable hinge to be compatible with grid beams, where the entire hinge (including the “pin”) is printed altogether as one.

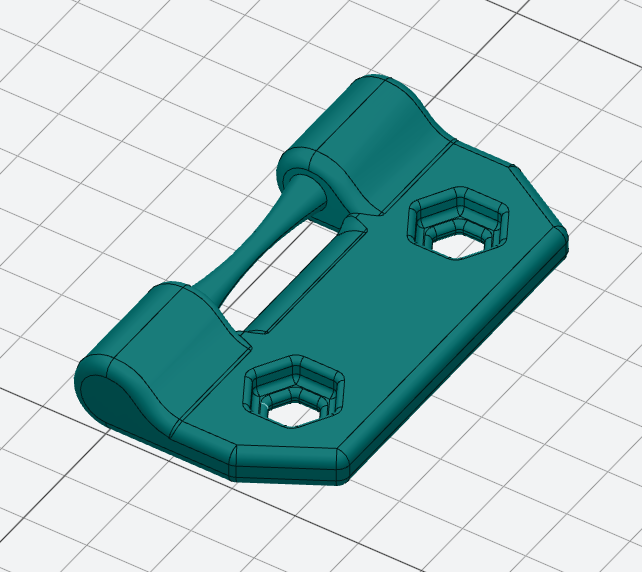

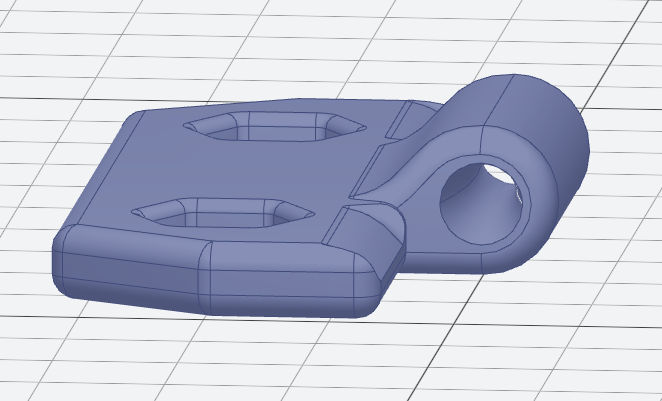

View the Replicad 3d model (and export 3d-printable file)
View the Replicad source code
My 3d printer is in disrepair, so I haven’t been able to print and test the model, but I’ll update when I’ve been able to print.
1 Like
mikey
2
Okay, got a new Prusa MK4S 3d printer assembled, let’s get printing!

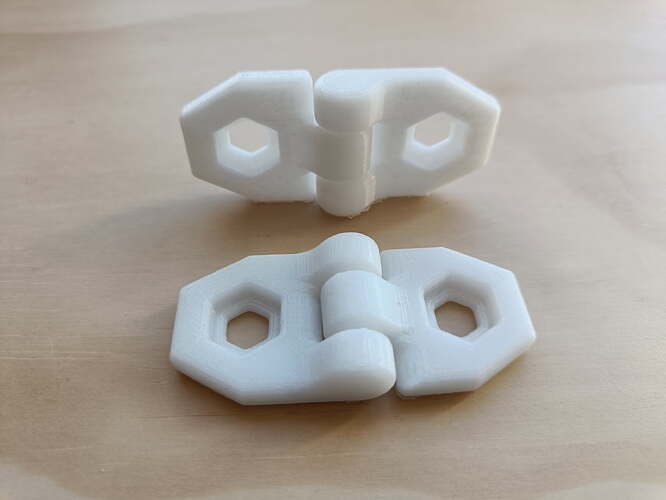

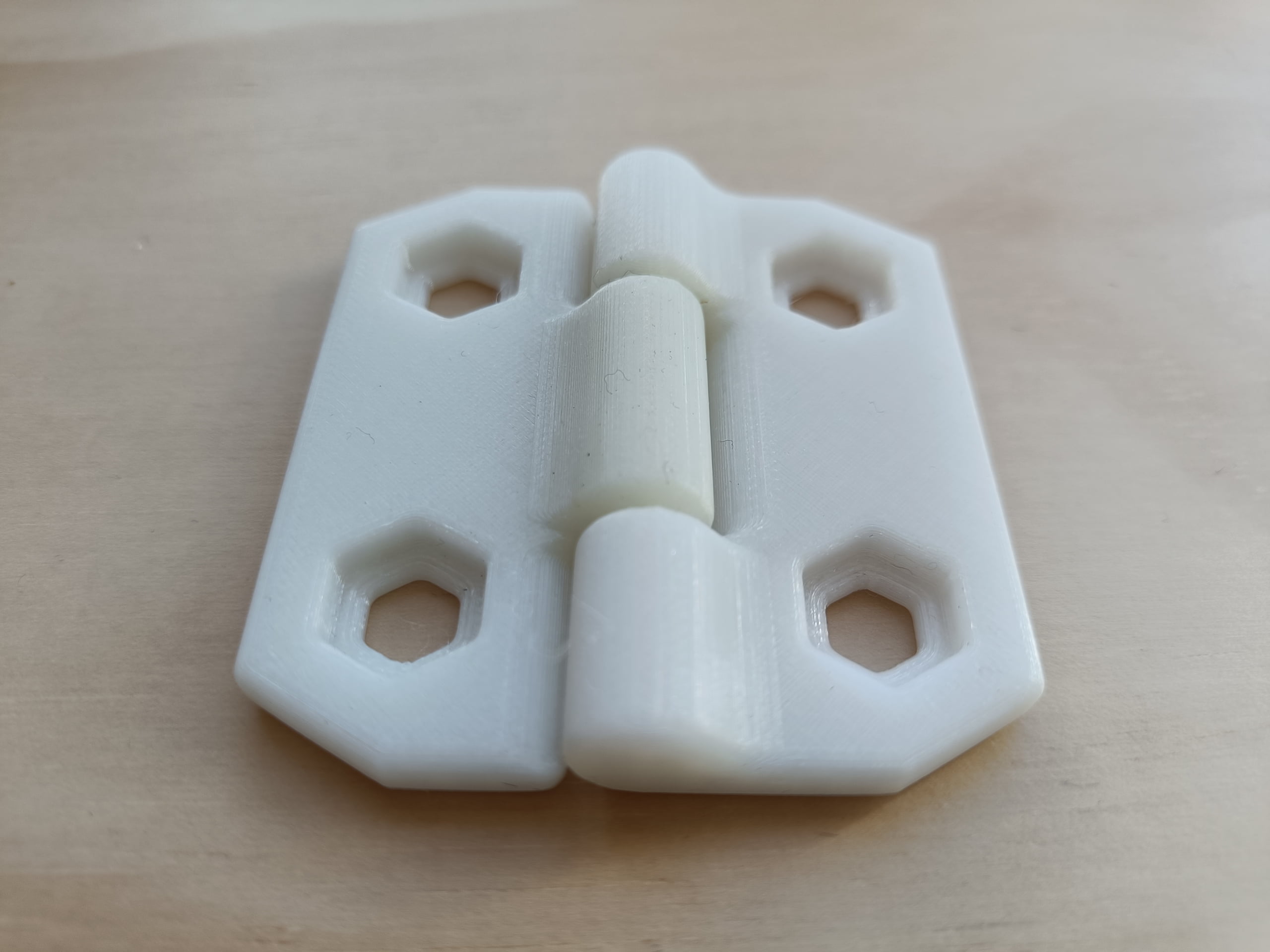

A 2-grid-unit hinge:

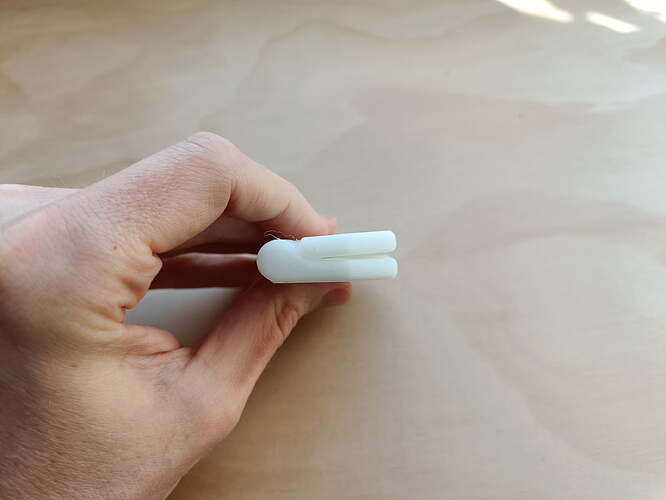

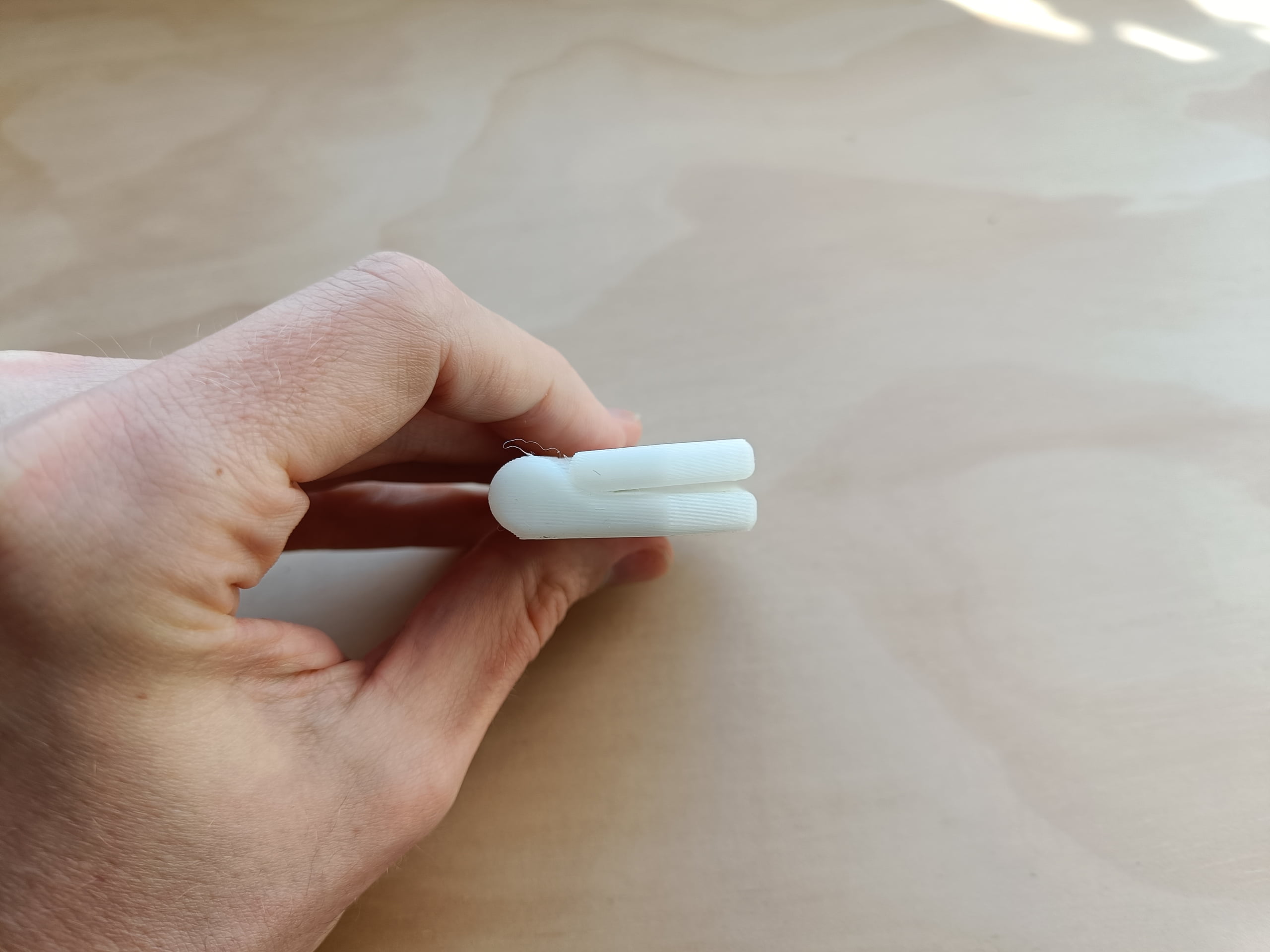

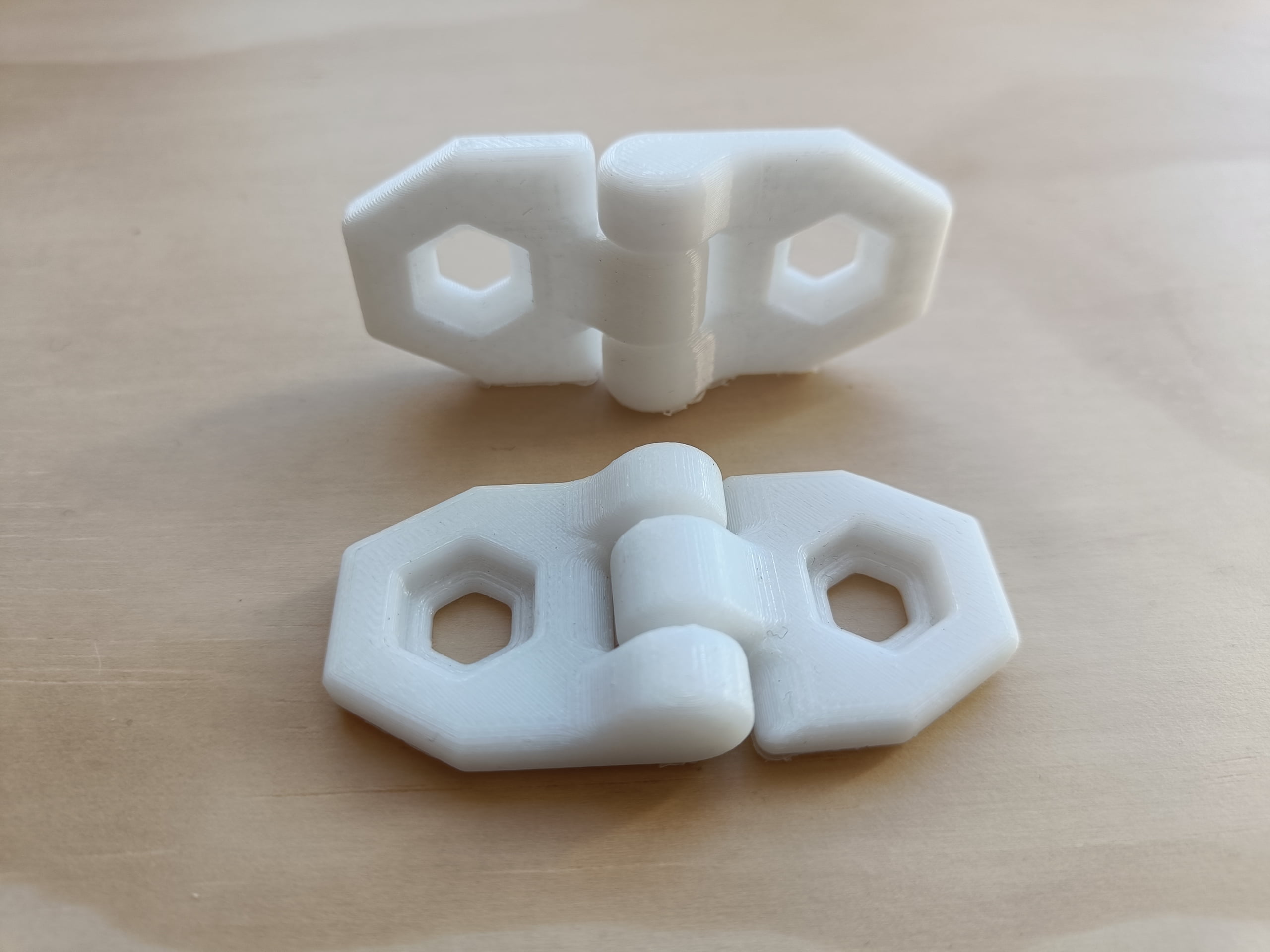

Two 1-grid-unit hinges:
- one printed horizontally: to maximize strength
- one printed vertically: to maximize hinge-smoothness

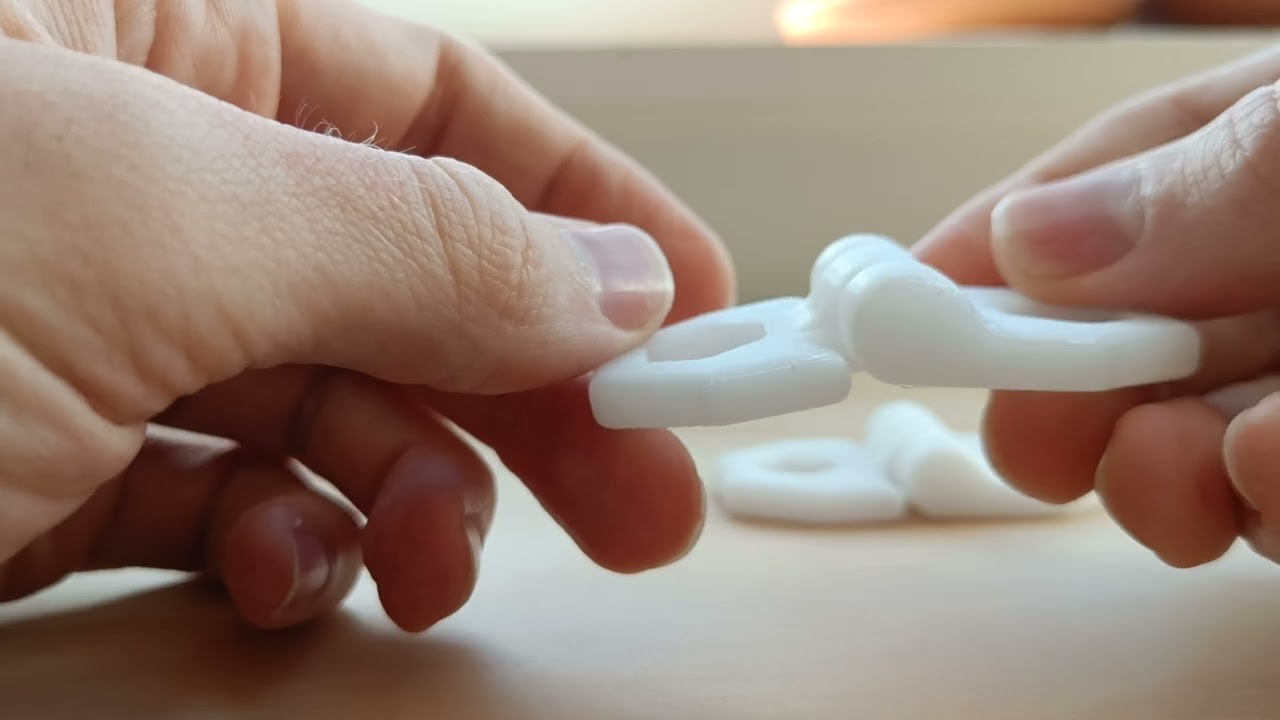

I also made a little video showing them off:
2 Likes
mikey
3
Oh also, I might need to update the design, since the butt of the hinge can’t close all the way.
